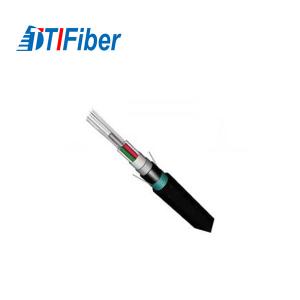

G652D GYFTY Single Mode Optical Fiber Outdoor 288 Core Non Armoured Duct Installation

  • 1
  • 2

Brand Name : TTI Fiber

Model Number : GYFTY

Certification : ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates

Place of Origin : China

MOQ : 1000

Price : Negotiable

Payment Terms : L/C, T/T, ,Paypal

Supply Ability : 5000m/day

Delivery Time : 5-8 working days

Packaging Details : wooden drum

Product name : GYFTY

Fiber count : 2-288 core

Installation : duct

Standards : IEC 60794

Core type : singlemode G652D

Outer sheath : PE

Central strength member : FRP

Package : wooden drum

Application : LAN communication

Temperature range : -40~+70

Contact Now

Fibre Optical Cable Outdoor Single Mode 288 Core Non Armoured G652D GYFTY Cable

Features:
All dielectric structure Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.

UV and waterproof design.

Applications:
Inter building voice or data communication backbones.

Installed as aerial/lashed, ducts, underground conduits.

Specification

No. of fiber 6F 12F 24F 36F 48F 72F 96F 144F
No. of tube 1 2 4 3 4 6 8 12
Fiber per tube 6 6 6 12 12 12 12 12
No. of filler rod 4 3 1 2 1 0 0 0
Tube diameter (±0.1mm) 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
Thickness of loose tube
(±0.05mm)		 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Nom. out diameter (±0.2mm) 8.6 8.6 8.6 8.6 8.6 9.2 10.8 13.4
Nom. jacket thickness
(±0.1mm)		 1.6 1.6 1.6 1.6 1.6 1.6 1.7 1.7
Loose tube Material PBT Color Standard spectrum
Filler rod Material PP Color Black
Tube filling Material Filling compound
Central strength member Material FRP Diameter 1.4mm (6-48F)
2mm (72-144F)
Layer PE (for 96F -144F only)
Water blcoking system Material water blocking tape
Rip cord Type 1110*2
Out sheath Material MDPE Color Black
